Description
Siment TouchLight Curved 2G Zigbee Touch Switch controls 2 lighting circuits through the TouchLight glass touch interface. The complete wall switch combines the Zigbee touch mechanism and its curved glass front.
Connected lighting control
This Siment switch brings touch operation to a connected lighting installation. Select the gang count for the circuits at the wall and use the communication protocol shown for this model when planning the smart home system. A module and a complete wall switch have different assembly requirements; the product format below identifies which is supplied.
Model details

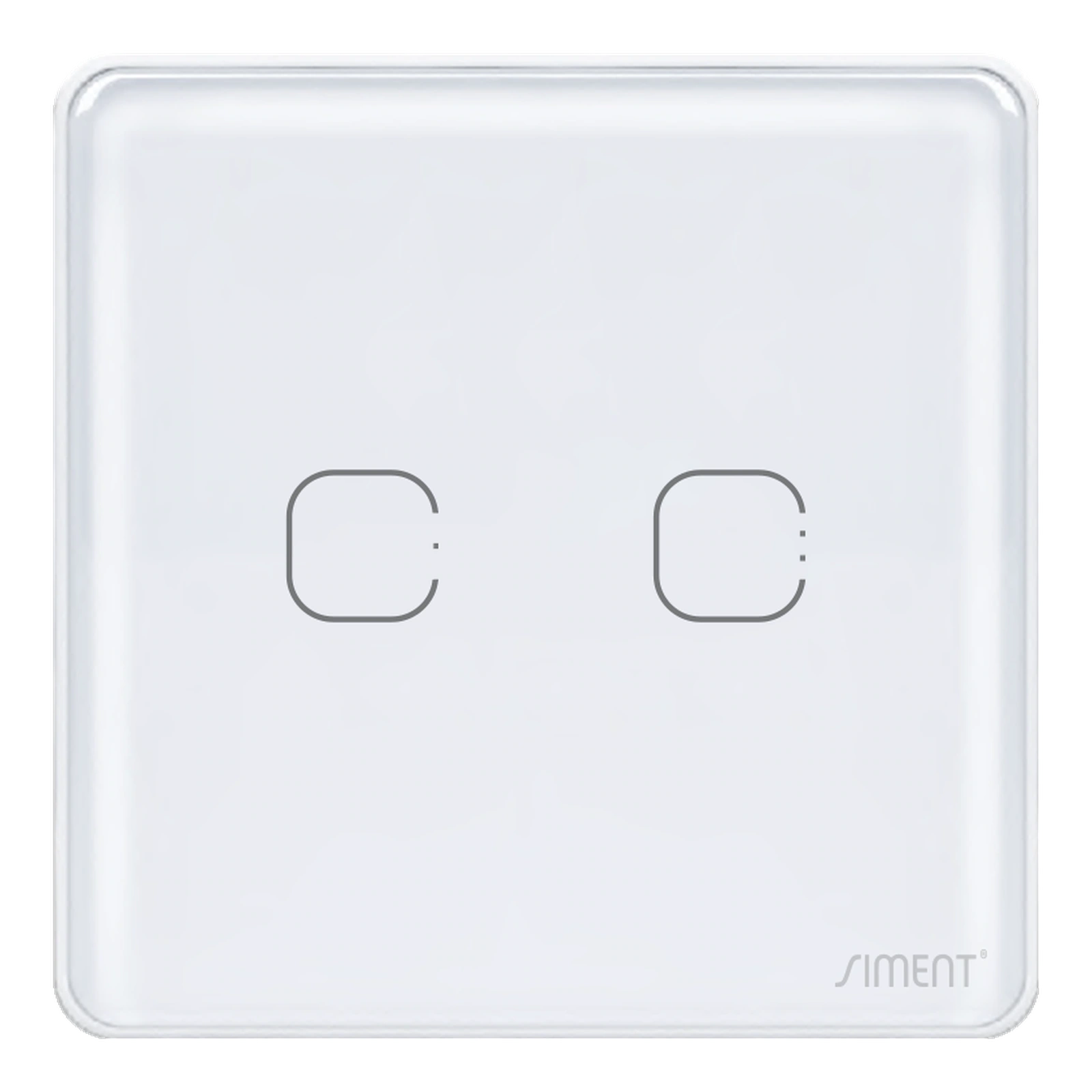

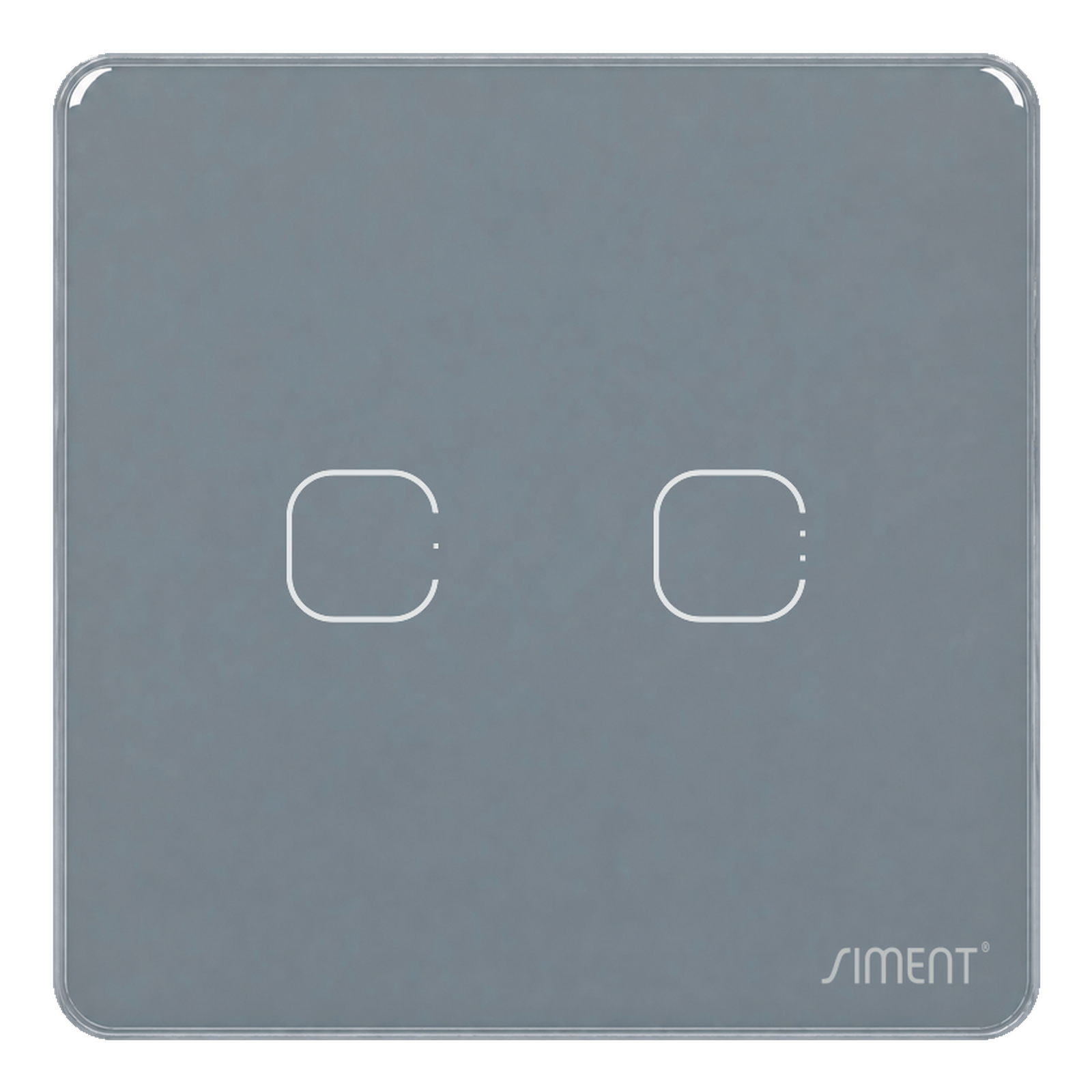

White, Black and Grey finishes are available. Each touch area follows the gang layout, with the Siment engraving in the lower-right corner.
Zigbee hub compatibility: Compatible Zigbee gateway / Akubela supported.
Choosing the configuration
Choose from Black, White and Grey finishes to coordinate the product with the wall arrangement.
Use the TouchLight series and the product format to select the matching frame or control assembly.
Technical specifications
| Colours | White, Black, Grey |
|---|---|
| Configuration | Zigbee · 2-gang touch switch |
| Models / SKU | SI-TLSG2GCW, SI-TLSG2GCB, SI-TLSG2GCG |
| Channels | 2 |
| Module dimensions | 50 × 50 × 25 mm |
| Assembled dimensions | 86 × 86 × 35 mm |
| Hub compatibility | Compatible Zigbee gateway / Akubela supported |
| Terminals | L, N, L1, L2 |
| Power supply | 220V |
| Electrical rating | 10A |
| Product format | Complete Zigbee smart touch wall switch |
| Frame compatibility | TouchLight curved glass front |
| Product configuration | Zigbee touch mechanism with curved glass front |
| Rated current per gang | 10 A per gang |
| Gang count | 2 |
| Compatible frame series | TouchLight |
Product questions
What is Siment TouchLight Curved 2G Zigbee Touch Switch used for?
A complete 2-gang Zigbee touch switch with a curved glass front.
What product configuration does this model use?
A complete 2-gang Zigbee touch switch with a curved glass front.
Which connection or communication method does this model use?
The product uses Zigbee.
